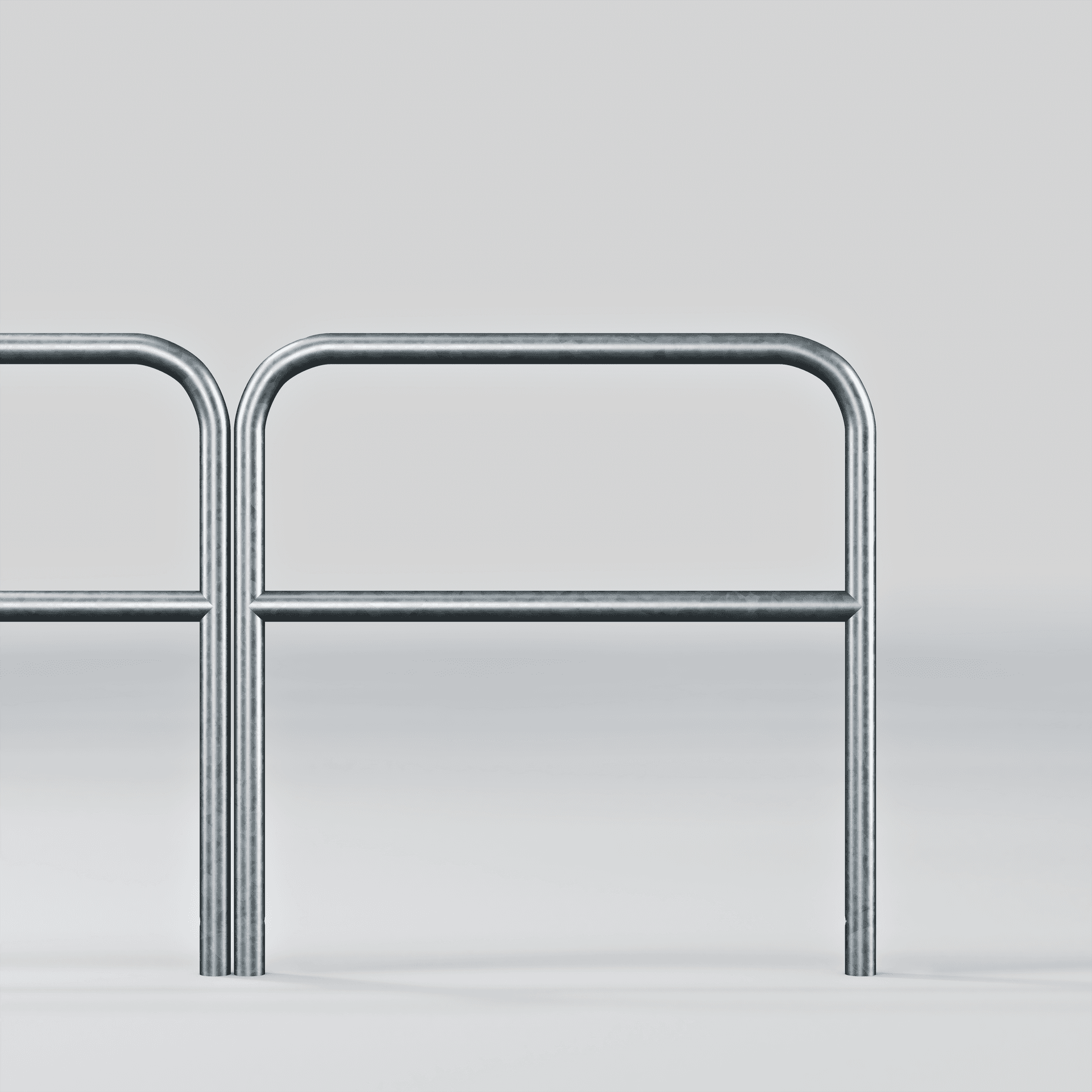

Railing SEKTIONSRÄCKE 48
SEKTIONSRÄCKE is a simple and robust solution for railings, well suited for a variety of environments. Its sleek design allows for easy replacement of individual sections in the event of damage.
Recommended colors
For more information about Smekab Citylife's complete range of RAL colours, see the colour chart.
Recommended colors
VFZ
RAL9005
Inspiration
Facts
Product name
Railing SEKTIONSRÄCKE 48
Designer
Smekab Citylife
Produced by
Smekab Citylife
Properties
- För plan mark
Material
- Steel, hot galvanized
- Steel, hot galvanized and powder coated
Anchoring
Bolting (below ground level), Bolting

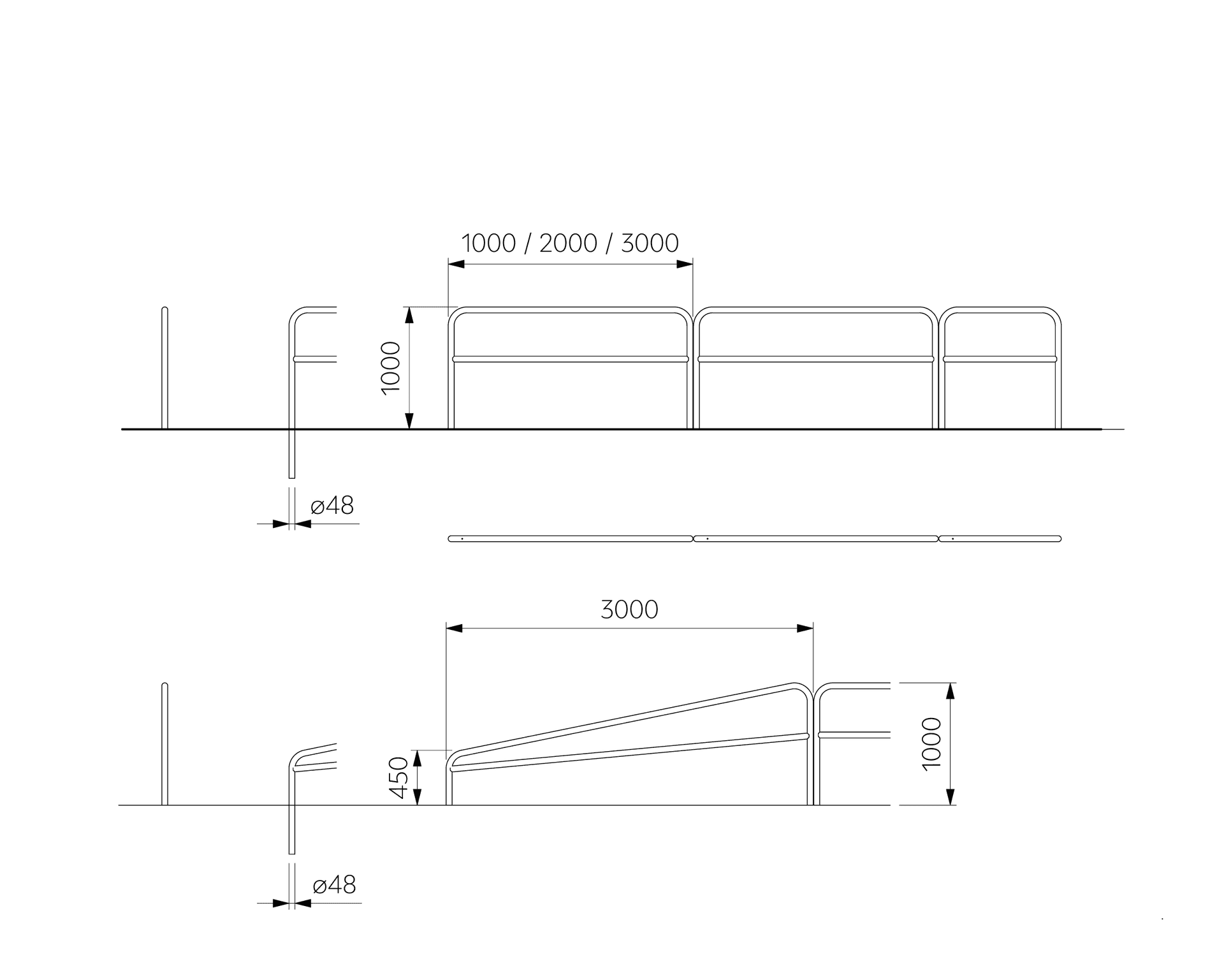

Height
1000 mm
Length
1000, 1500, 2000, 3000 mm
Diameter Post
48 mm
Diameter railing pipe
48 mm
Product family
Articles
Here you will find information about articles and accessories.
Articles
| Art. no. | Name | Length |
|---|---|---|

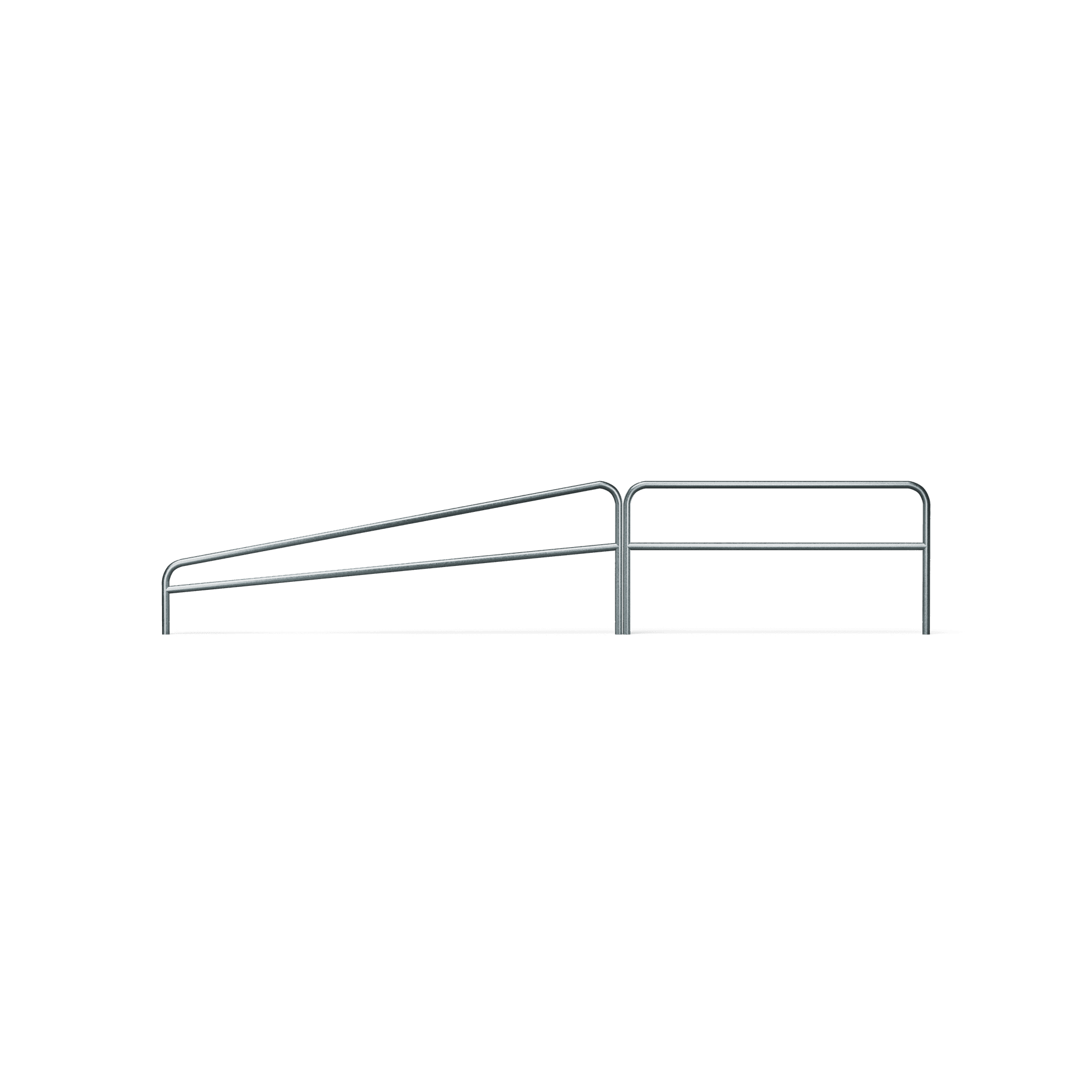

| 70243091 | RÄCKESAVSLUT 48 3,0 m fastb. | 3000 mm |
| 70243091X | RÄCKESAVSLUT 48 3,0 m fastb. RAL____ | 3000 mm |
| 70243091B | RÄCKESAVSLUT 48 3,0 m fastb. RAL9005 | 3000 mm |
| 70243000 | RÄCKESAVSLUT 48 3,0 m nedg | 3000 mm |
| 70243000X | RÄCKESAVSLUT 48 3,0 m nedg RAL_____ | 3000 mm |
| 70243000B | RÄCKESAVSLUT 48 3,0 m nedg RAL9005 | 3000 mm |
| 71211000 | SEKTIONSRÄCKE 48 1,0 m fastb | 1000 mm |
| 71211000X | SEKTIONSRÄCKE 48 1,0 m fastb RAL_____ | 1000 mm |
| 71211000B | SEKTIONSRÄCKE 48 1,0 m fastb RAL9005 | 1000 mm |
| 70211000 | SEKTIONSRÄCKE 48 1,0 m nedg | 1000 mm |
| 70211000X | SEKTIONSRÄCKE 48 1,0 m nedg RAL_____ | 1000 mm |
| 70211000B | SEKTIONSRÄCKE 48 1,0m nedg RAL9005 | 1000 mm |
| 71211510 | SEKTIONSRÄCKE 48 1,5 m fastb | 1500 mm |
| 71211510X | SEKTIONSRÄCKE 48 1,5 m fastb RAL____ | 1500 mm |
| 71211510B | SEKTIONSRÄCKE 48 1,5 m fastb RAL9005 | 1500 mm |
| 71212000 | SEKTIONSRÄCKE 48 2,0 m fastb | 2000 mm |
| 71212000X | SEKTIONSRÄCKE 48 2,0 m fastb RAL_____ | 2000 mm |
| 71212000B | SEKTIONSRÄCKE 48 2,0 m fastb RAL9005 | 2000 mm |
| 70212000 | SEKTIONSRÄCKE 48 2,0 m nedg | 2000 mm |
| 70212000X | SEKTIONSRÄCKE 48 2,0 m nedg RAL____ | 2000 mm |
| 70212000B | SEKTIONSRÄCKE 48 2,0 m nedg RAL9005 | 2000 mm |
| 71213000 | SEKTIONSRÄCKE 48 3,0 m fastb | 3000 mm |
| 71213000X | SEKTIONSRÄCKE 48 3,0 m fastb RAL_____ | 3000 mm |
| 71213000B | SEKTIONSRÄCKE 48 3,0 m fastb RAL9005 | 3000 mm |
| 70213000 | SEKTIONSRÄCKE 48 3,0 m nedg | 3000 mm |
| 70213000X | SEKTIONSRÄCKE 48 3,0 m nedg RAL____ | 3000 mm |
| 70213000B | SEKTIONSRÄCKE 48 3,0 m nedg RAL9005 | 3000 mm |
Options, anchoring
Downloads
- DWG files
- sektionsracke-dwg.zip
- Assembly instructions
- Installation-SEKTION-raekvaerk-77900136-2019-10-30-dk.pdf (1)
Warranties and Maintenance
- Warranties
- See documents
- Maintenance
- See documents
