Swing arm barrier 6,1-8 m (13-16 m)

The VB slewing boom is a robust and flexible safety solution that exceeds all expectations for roadblocks. Its sturdy construction and variable length make VB a reliable physical barrier that protects, secures and creates opportunities.

Recommended colors

For more information about Smekab Citylife's complete range of RAL colours, see the colour chart.

Colour chart

Facts

Product name
Swing arm barrier 6,1-8 m (13-16 m)
Designer
Smekab Citylife
Produced by
Smekab Citylife
Properties

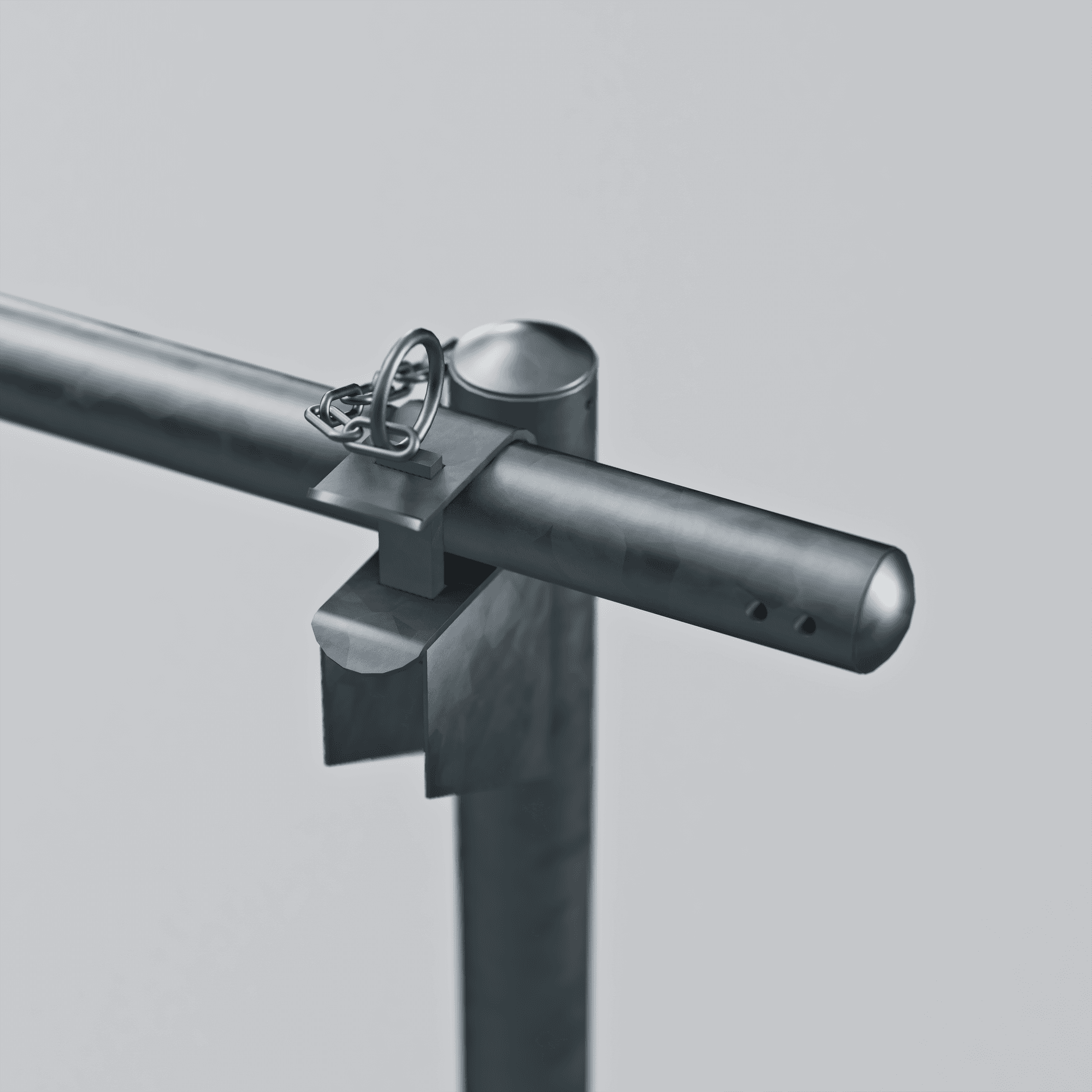

  • For throw over gate loop latch (not included)
  • Teleskoperat bomrör
  • Öppningsbar 90° medurs/moturs
  • Manuell öppning
  • Are combinded in pairs
  • Without reflex (option)
Material
  • Steel, hot galvanized
Anchoring
Bolting

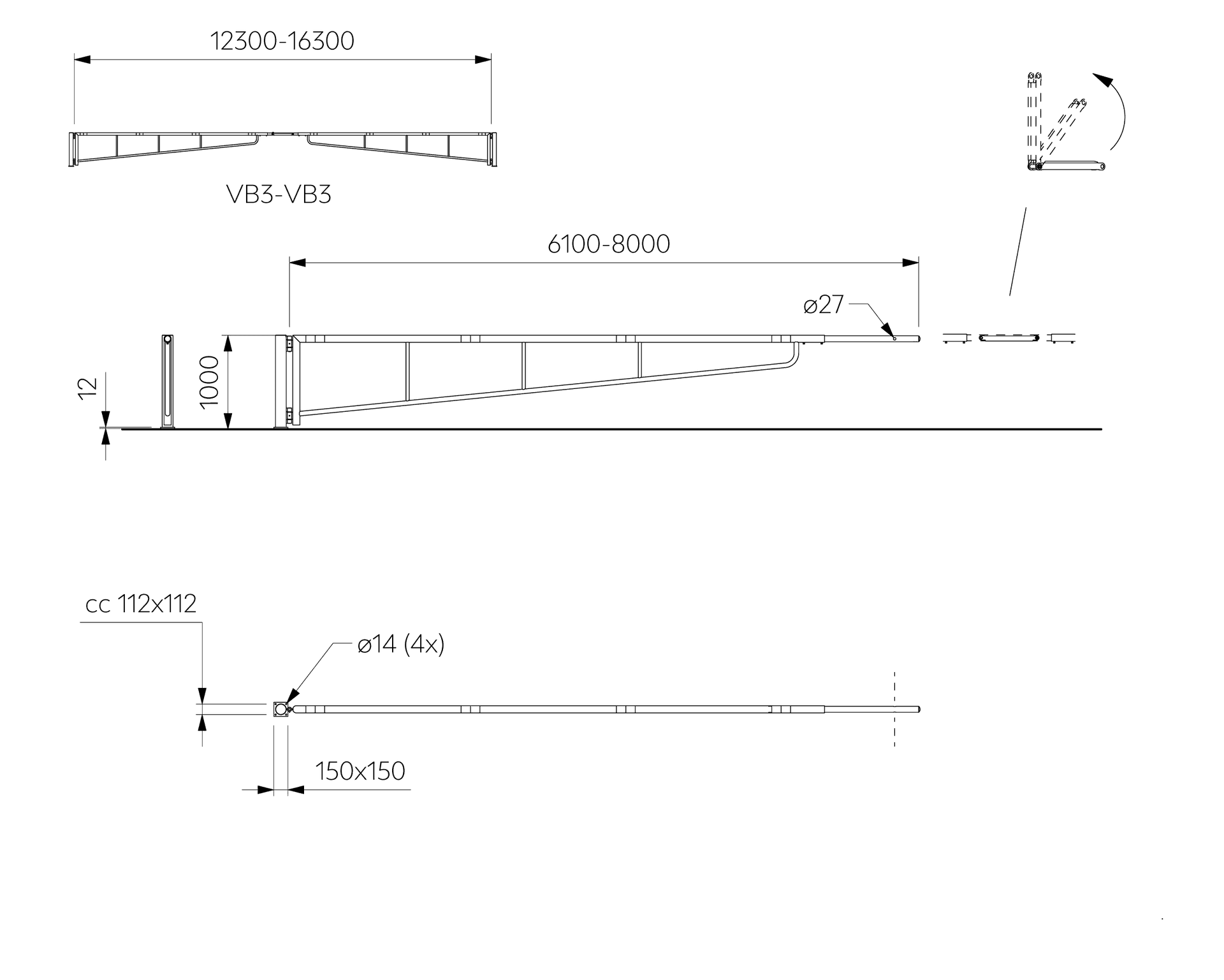

Height
1000 mm
Length
6100-8000 mm
Diameter gate
64/60 mm

Product family

VB

Swing arm barrier VB1 3,5-5,2 m

VB

Swing arm barrier 3,5-5,2 m (7-10 m)

VB

Swing arm barrier 4,7-6,6 m (10-13 m)

VB

Swing arm barrier 6,1-8 m (13-16 m)

VB

Swing arm barrier VB2 4,7-6,6 m

VB

Swing arm barrier VB3 6,1-8 m

Articles

Here you will find information about articles and accessories.

Articles

Art. no.NameLength
79700213Vridbom VB3 (6,1-8,0 m) för överfallslås6100-8000 mm

Options, anchoring

Barriers

Cast-in foundation, vechicle barrier/barriers

Barriers

Precast concrete foundation, vechicle barrier/barriers
